Technical Specifications

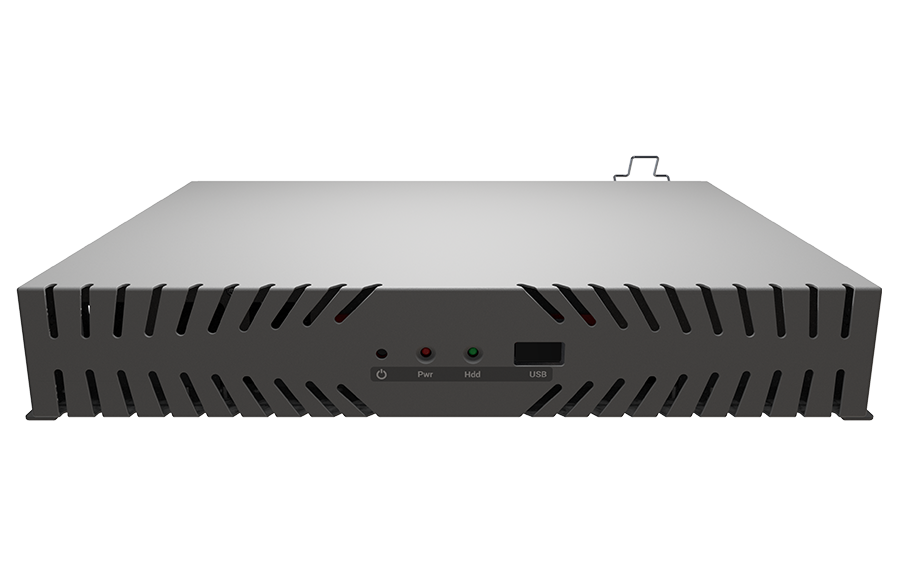

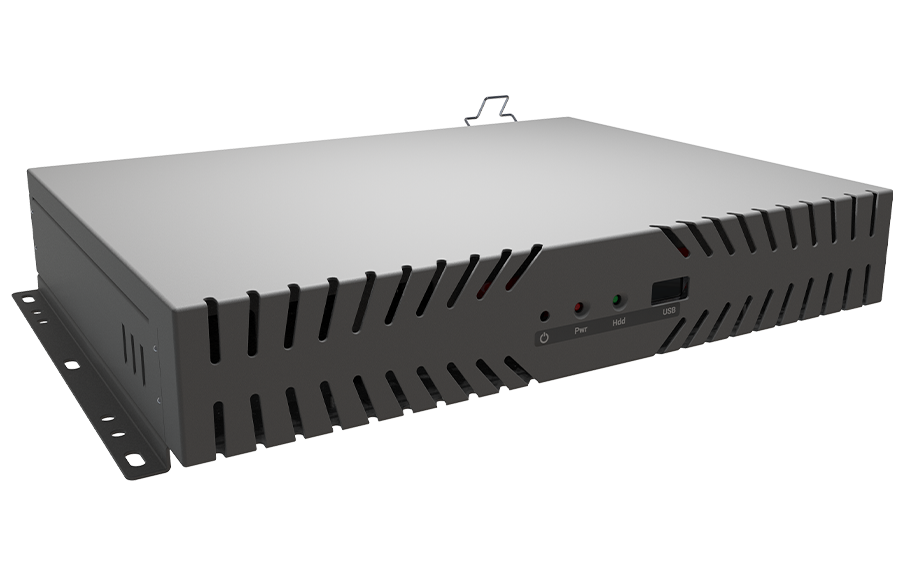

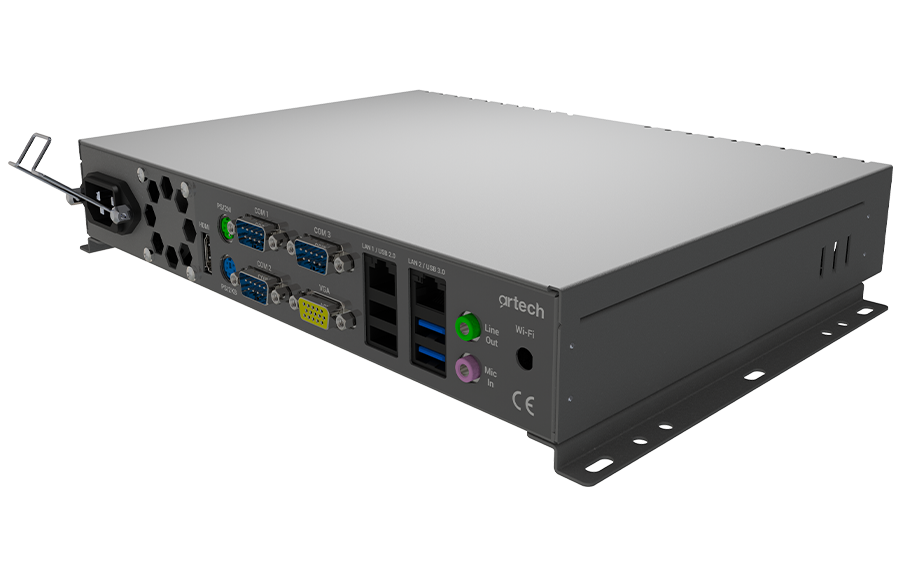

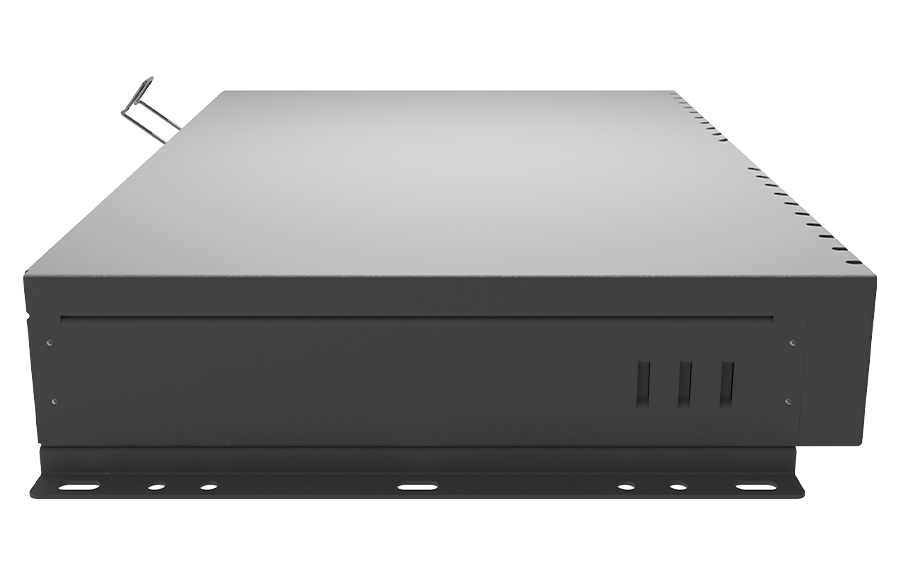

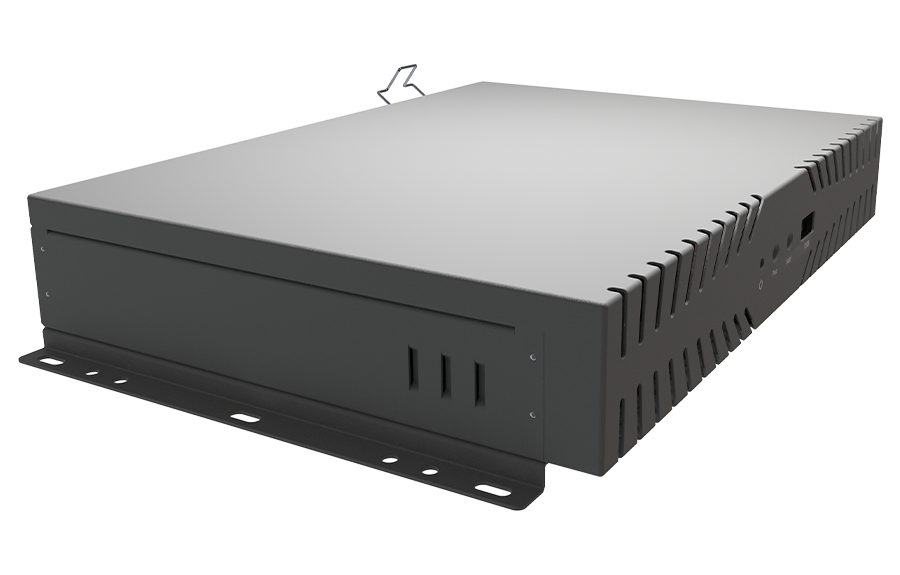

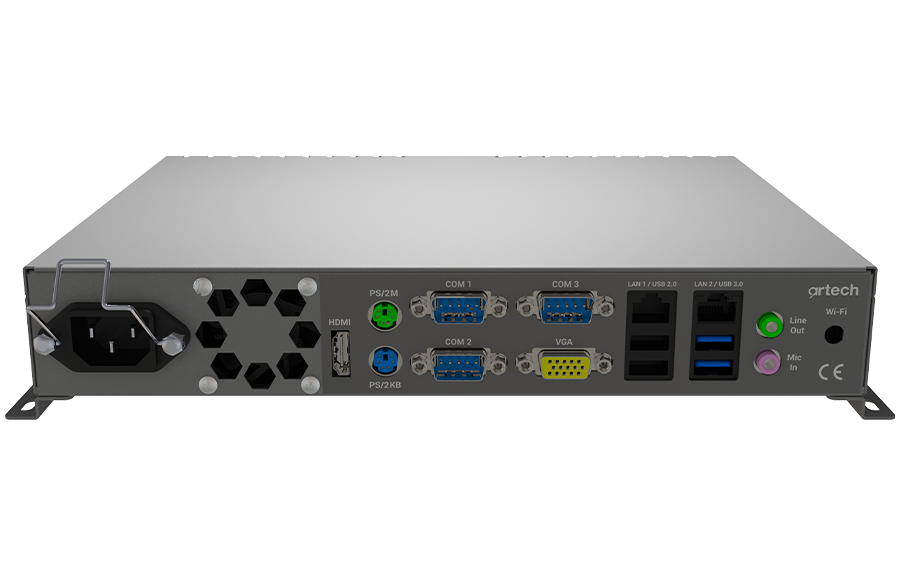

BPC-300 Series
EoL - End of Life
- Fanless Cortex Android Processor
- Robust Design
- Power Supply Filter
- Fanless Cooling
- Up to 3 Years Standard and 5 Years Spare Parts Supply Warranty
Compact Design
Price / Performance Product
Industrial Dust Proof Metal Case
Special Lockable Slot for Easy Hard Drive Replacement (OPS)
Sectors
Technical Specifications
System
CPU :
Intel® Celeron j1900 / Intel® Icore I5/I7
Cache :
2nd Level depends on CPU
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB (16GB Optional)
Video RAM :
Maks 128 MB shared memory
Control :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
SPP/EPP/ECP(Optional)
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
Dual LAN; LAN2 as Realtek RTL8100C Fast Ethernet, LAN1 as Realtek RTL8110S Gigabit Ethernet
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
MiniPCIe
Data Storage
HDD / Type :
2.5” HDD
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC or 24VDC
Extra Video Output
Type :
HDMI/(DP/DVI/VGA Optional)
Max. Resolution :
1920x1080/(2560x1600 Optional)
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Order Code
CPU :
J1900, i5, i7
PSU :
AC - 220 VAC, DC - 24 VDC
RAM :
R4, R8, R16(Optional)
HDD :
500 GB HDD(Optional), 64 GB SSD, 128 GB SSD, 256 GB SSD
Wifi :
Optional
