DPC-365 Series

Artech Professional Information Display: Optimal Solution for Digital Broadcasts

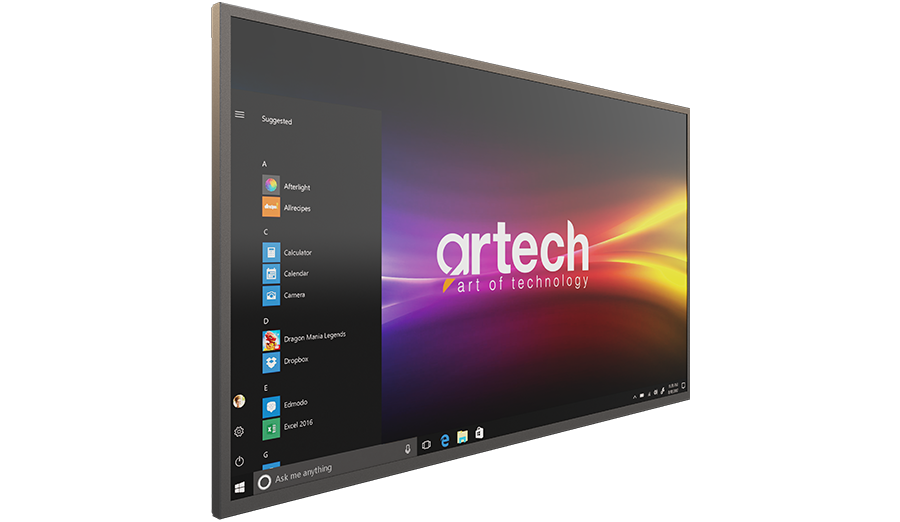

The Artech DPC-365 Series Professional Information Displays are specifically designed for digital broadcasting systems, providing a flawless, maintenance-free device that meets all their requirements. These 65-inch displays offer the most common and effective communication solution to reach your target audience. They feature a shock-resistant stainless steel body, 3mm anti-glare shatterproof glass, and precise filtering for superior protection against dust and humidity. Additionally, remote connection capabilities for problem analysis and resolution simplify your technical support processes.

Key Features:

  • Shock-Resistant Metal Body: Ensures long-lasting use with a robust structure.
  • 3mm Anti-Glare Shatterproof Glass: Non-reflective and resistant to breakage.
  • Precise Filtering: Effective protection against dust and humidity.
  • Remote Connection: Facilitates rapid analysis and resolution of issues via remote technical support.
  • Corporate Logo and Color Options: Customization to align with your brand's aesthetics.



Support with Remote Connection
Support with Remote Connection
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
Intel® Celeron j1900 / Intel® Icore i5/i7
Cache :
2nd Level depends on CPU
Memory :
4GB
Video RAM :
Max 128 MB shared memory
Control :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
N.A.
USB Port :
2 x USB 2.0
LAN :
1 x LAN Realtek Gigabit Ethernet
Audio :
3W Stereo Output / 5W Speaker (Optional)
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5 ”(500 GB HDD)
SSD :
64 GB
Feed
Input :
220VAC or 24VDC
Extra Video Output
Type :
HDMI/DP/DVI/VGA Optional)
Max. Resolution :
1920x1080(2560x1600 Optional)
LCD Screen
Type and Size :
65" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.744mm x 0.744mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Surface Mount / Built-in
Order Code
CPU :
J1900, i5, i7
PSU :
AC - 220VAC
RAM :
R4
HDD :
HDD 500GB(Opt), SSD64
Wifi :
N.A

Support

Please contact us for information about the products or for technical support.
