GP-417 Series

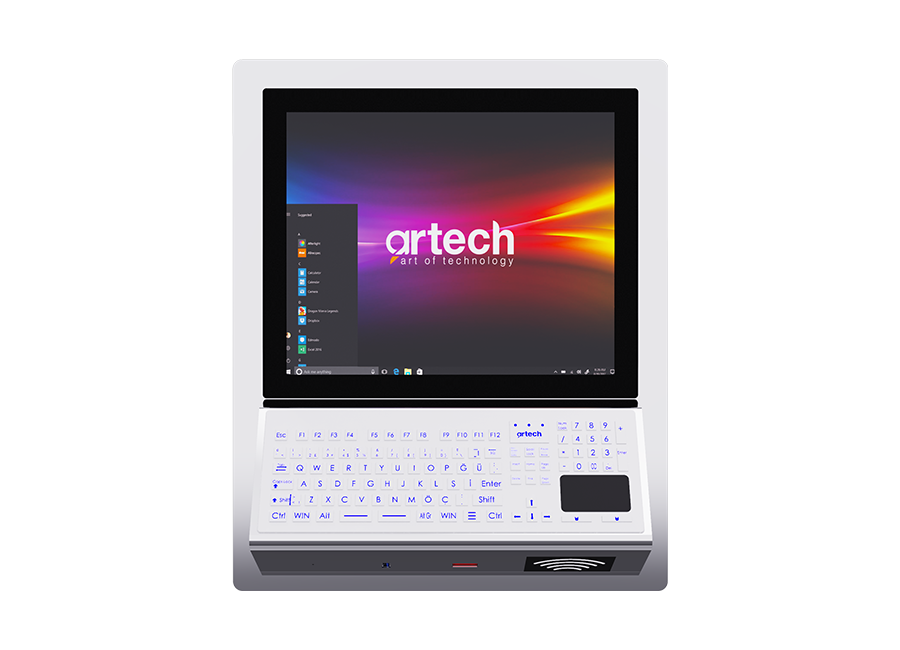

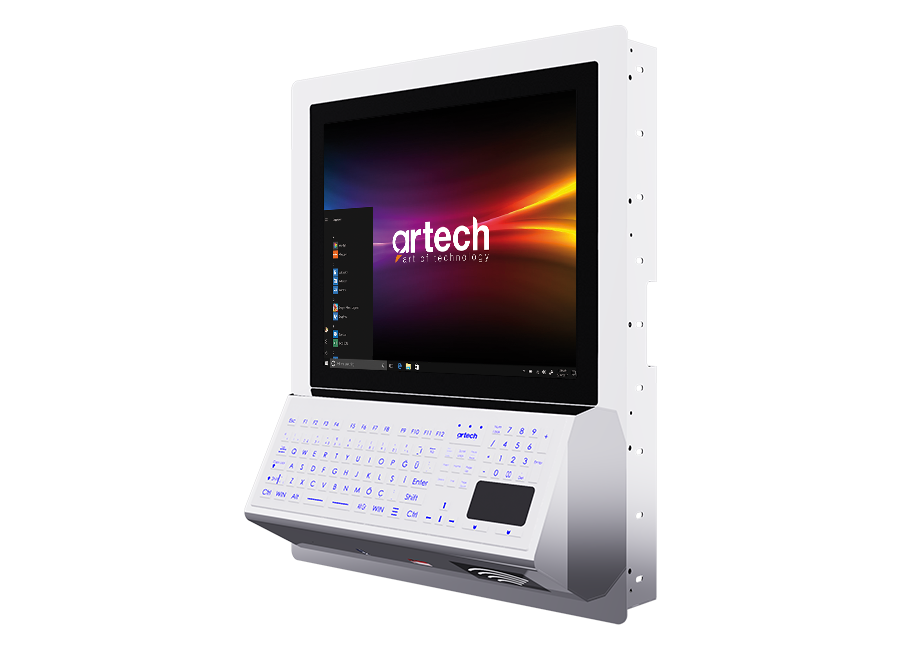

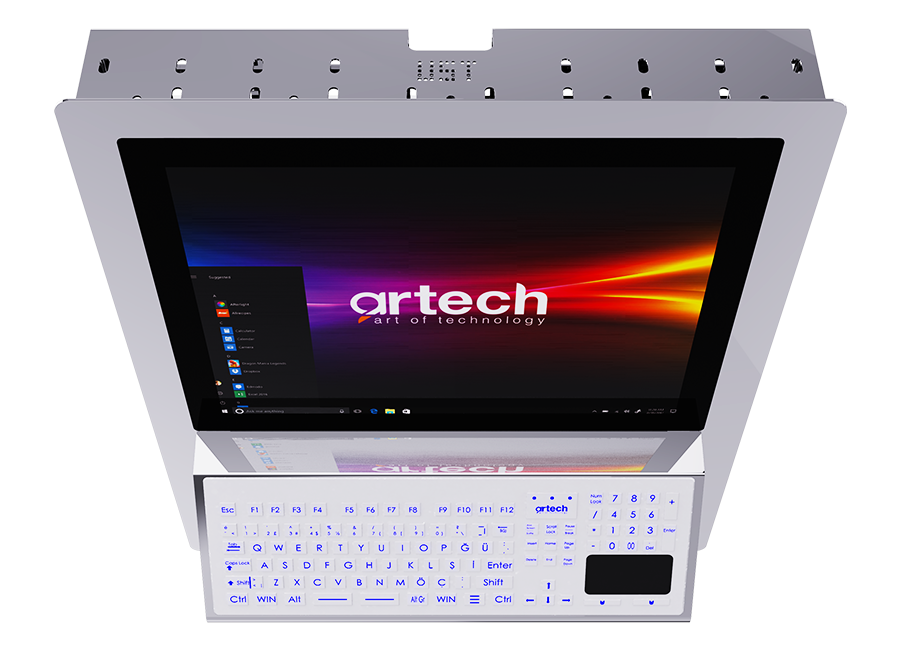

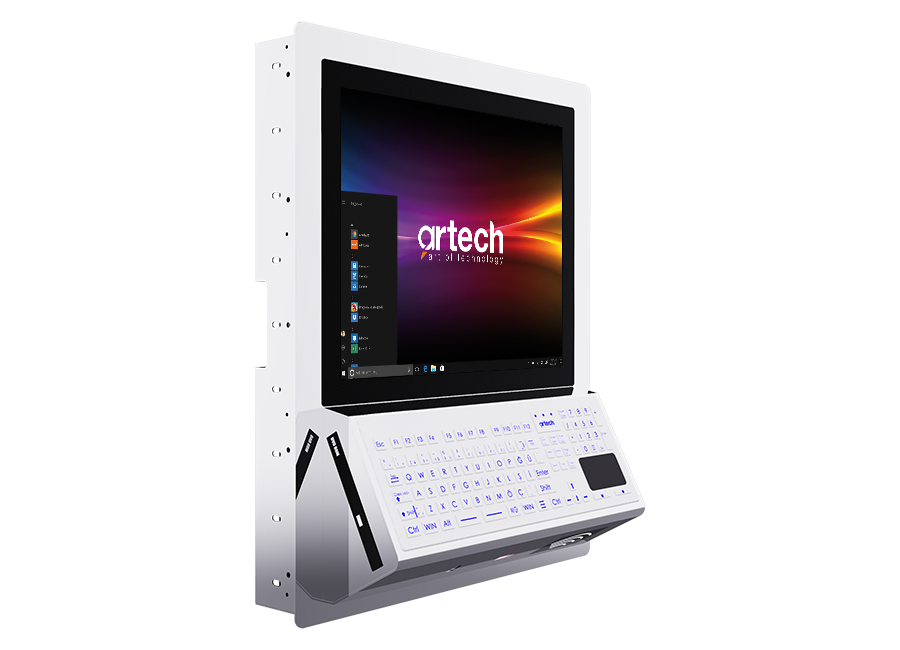

Artech OR Console: Fast and Secure Access to Patient Information
The Artech OR Console is designed for healthcare professionals to quickly access historical and current patient information, ensuring compliance with sterile environment requirements. This medical PC is compatible with your existing technology network and software, and is configurable for future applications.
Key Features:
- Access to Patient Information with HIS: Provides quick access to patient information through the Hospital Information Management System (HIS).
- Operating Room Record Keeping: Securely keeps operating room records.
- Barcode Reader: Enables fast and accurate data entry.
- RFID Reader: Tracks personnel and consumables using RFID technology.
- IP65 Front Panel Protection: Easy to disinfect, suitable for sterile environments.
- Antibacterial Q Keyboard and Touchpad: Hygienic and user-friendly.
- Regulatory Compliance: Complies with 2017/745 Medical Device Regulation and IEC-60601 standards for medical electrical equipment safety and electromagnetic compatibility.
Operating Room Records
Managing Recording and Viewing Functions
Access to Patient Information and Personnel Tracking
Material and Consumable Tracking with Barcode and RFID System
Sectors
Technical Specifications
System
CPU :
Intel® Celeron j1900 / Intel® Icore i5/i7
Cache :
2nd Level depends on CPU
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB(16GB Optional)
Video RAM :
Max 128 MB shared memory
Control :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
3 x RS-232 Ports
Parallel Port :
SPP/EPP/ECP (Optional)
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
2 x LAN Realtek Gigabit Ethernet,
Keyboard :
Integrated Antibacterial Turkish Keyboard
Mouse :
Integrated Antibacterial Touchpad
Optical Drive :
DVD-RW Optical Driver (Optional)
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
PCIe / MiniPCIe
Readers :
Built-in QR Barcode Scanner Module (Optional), RFID Reader(Optional)
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5 ”(500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC or 24VDC
Extra Video Output
Type :
HDMI(DP/DVI/VGA Optional)
Max. Resolution :
1920x1080(2560x1600 Optional)
LCD Screen
Type and Size :
17" / 4:3
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
17" Touch-Resistive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Custom Built-in Metal
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
J1900, i5, i7
PSU :
AC220
Optical Drive :
DVD-RW
RAM :
R4, R8, R16
HDD :
500GB HDD(Ops), SSD64, SSD128, SSD256
Wifi :
Opsiyonel
RFID Reader :
Mifare, HID
Barcode Reader :
1D, QR
