M-355 Series

Ideal Solution for Displaying Line Information in Factories

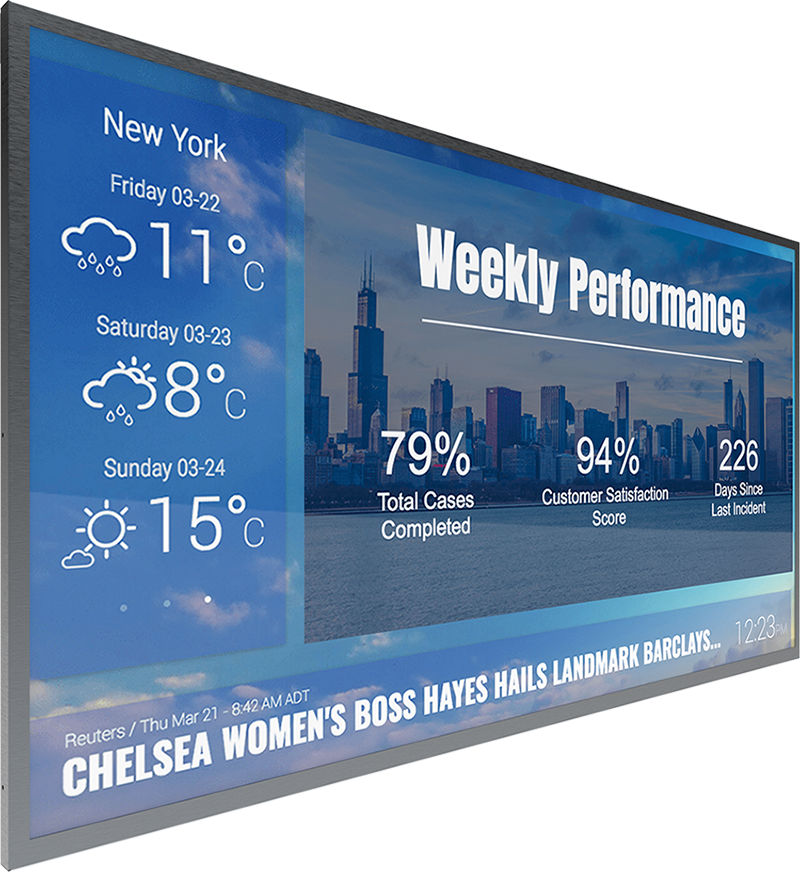

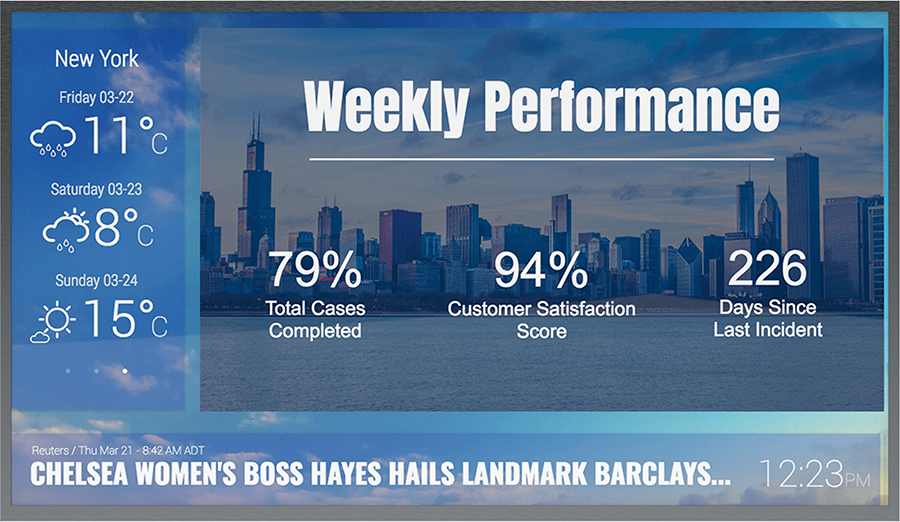

The Artech 55'' Andon Display provides an ideal solution for displaying line information in factories. Developed with your corporate needs in mind, these information screens stand out with their centralized management and the ability to broadcast various content. They provide the most widespread and effective communication solution to reach your employees and management in real-time, enhancing production processes efficiently.

Key Features:

  • Corporate Logo and Color Options: Customization to match your business identity.
  • Durable and Long-Lasting Product: Suitable for long-term use in tough factory conditions.
  • Remote Connection for Problem Analysis and Solution: Remote support for quick and effective technical issue resolution.

The Artech 55'' Andon Display offers the most widespread and effective communication solution to display line information and monitor production processes in factories. It ensures easy access to real-time data and alerts for employees and managers.

Support with Remote Connection
Support with Remote Connection
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
Intel® Celeron j1900 / Intel® Icore i5/i7
Cache :
2nd Level depends on CPU
Memory :
4GB
Video RAM :
Max 128 MB shared memory
Chipset :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
N.A.
USB Port :
2 x USB 2.0
LAN :
1 x LAN Realtek Gigabit Ethernet
Audio :
3W Stereo Output / 5W Speaker (Optional)
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5 ”(500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC or 24VDC
Extra Video Output
Type :
HDMI/DP/DVI/VGA Optional)
Max. Resolution :
1920x1080(2560x1600 Optional)
LCD Screen
Type and Size :
55" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.630mm x 0.630mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Surface Mount / Built-in
Order Code
CPU :
J1900,i5,i7
PSU :
AC - 220VAC
RAM :
R4
HDD :
HDD 500GB(OPS), SSD64, SSD128, SSD256
Wifi :
N.A

Support

Please contact us for information about the products or for technical support.
