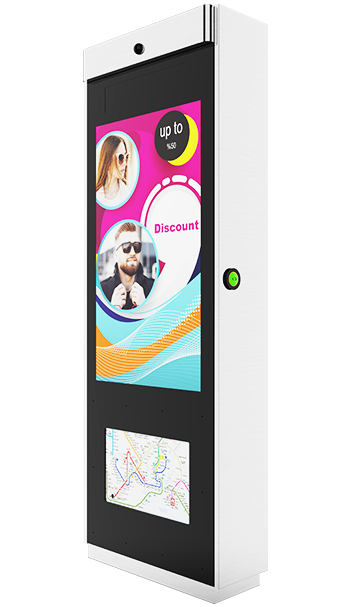

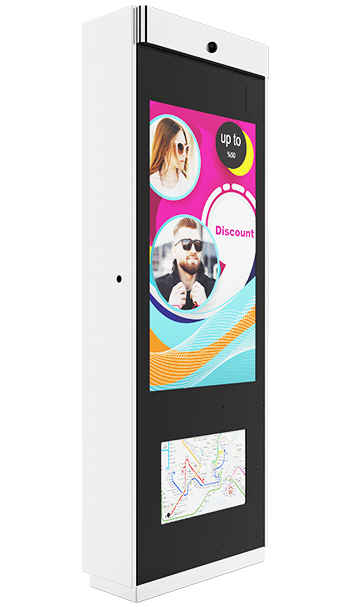

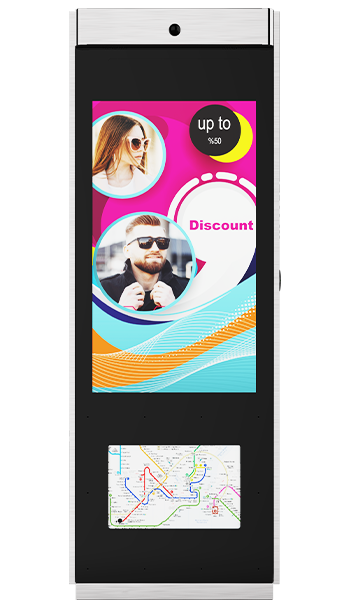

TO-455 Series

Weather-Resistant Advertising and Information Solution

The Artech TO-455 Series Outdoor Totem allows you to conduct advertising, promotional, and informational activities without being affected by environmental conditions. This digital signage solution, capable of broadcasting content in various formats, features screens on both the front and back, offering an elegant design.

Key Features:

Elegant Design and Interactive Solutions: Aesthetic appearance and user-friendly interaction.
Suitable for Outdoor Conditions: Reliable performance in challenging environmental conditions.
Customizable Corporate Colors and Logos: Personalization to match your brand identity.

The Artech TO-455 Series Outdoor Totem is the ideal solution for outdoor advertising and information needs. It stands out with its elegant design and interactive solutions, offering long-lasting use due to its durability. Customizable with corporate colors and logos to suit your brand.

Elegant Design

Customizing with Corporate Color and Logo

Durable and Long Lasting

Sectors

Transportation

Entertainment

Smart City

Technical Specifications

System

CPU :

RK3566 - SoC Quad-core, up to 2.0 GHz - Fanless

Cache :

N.A.

Memory :

Video RAM :

N.A.

Chipset :

N.A.

Watchdog Timer :

Support

Android OS :

Android 11.0

I/O

Serial Port :

3 x RS-232 ports (Optional)

USB Port :

2 x USB 2.0 compliant

LAN :

1 x Lan

Wireless LAN :

Optional - 802.11 b / g

Audio :

2x10W Stereo Speaker

Camera :

Mobil Dome Network Camera

Data Storage

HDD / Type :

2.5” (500 GB HDD)

SSD :

64 GB / 128GB / 256 GB

Extra Video Output

Type :

Optional—VGA / DVI / HDMI

Max. Resolution :

1920x1080

LCD Screen

Type and Size :

55" LVDS

Max. Resolution :

1920x1080

Pixel Pitch :

0.4902 mm x 0.4902 mm

Max Color :

16.7 M

Brightness (cd/m2) :

2500 cd

Contrast Ratio :

3000/1

Viewing Angle :

178°(H),178°(V)

Back Light MTBF :

50,000 hours

Mechanical & Environmental Features

Operating Temperature :

0 ~ 60°C

Storage Humidity :

10 ~ 90% (non-condensing)

Case :

Heavy-Duty Metal Case

Weight :

Variable according to screen size

Dimensions :

Variable according to screen size

Mounting :

Mobile/Ground Fixed - Optional

Order Code

CPU :

RK3566 - SoC Quad-core, up to 2.0 GHz - Fanless

PSU :

AC - 220VAC

RAM :

HDD :

16GB (Flash)

Wifi :

Optional
