VPC-215 Series

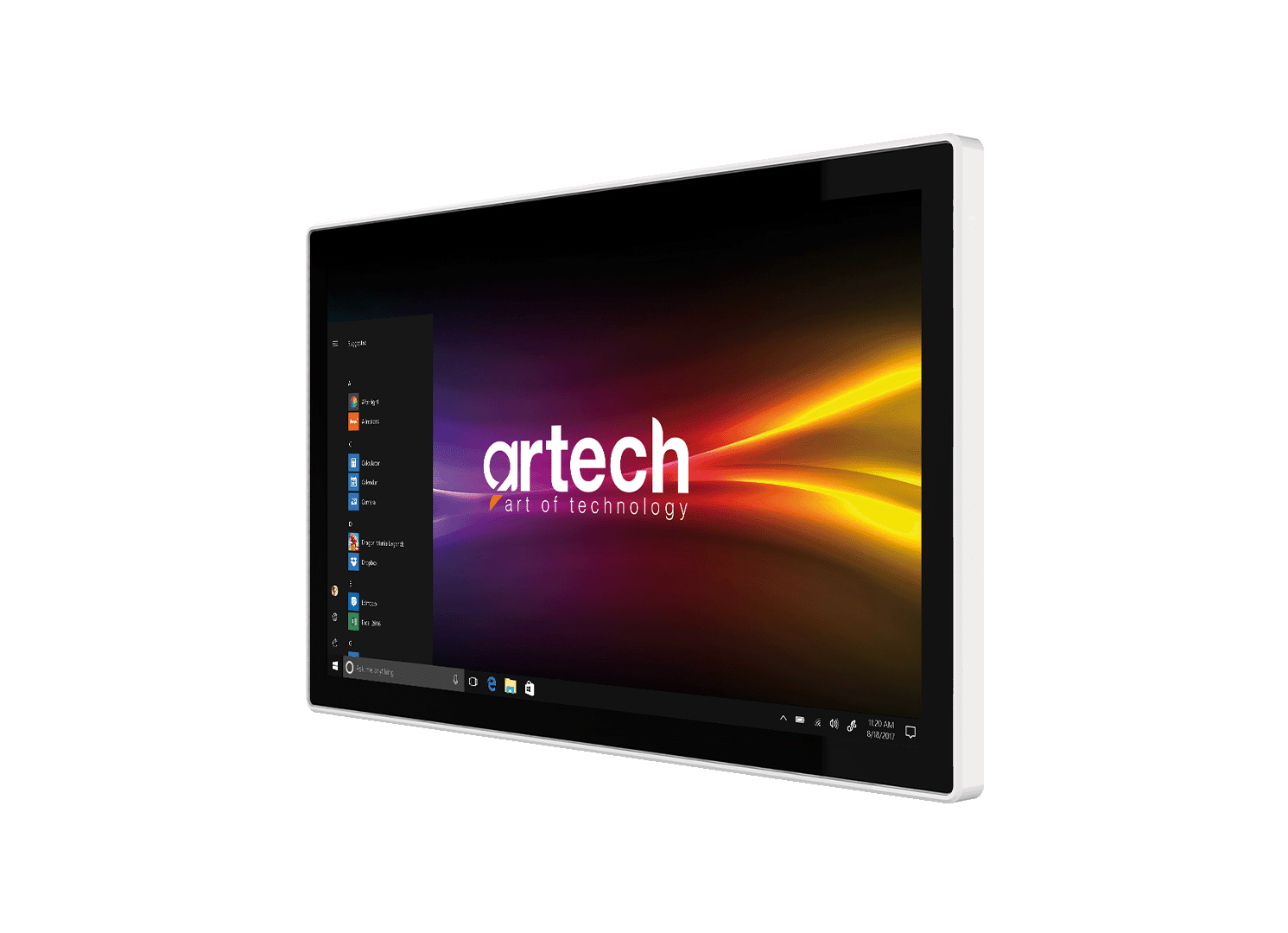

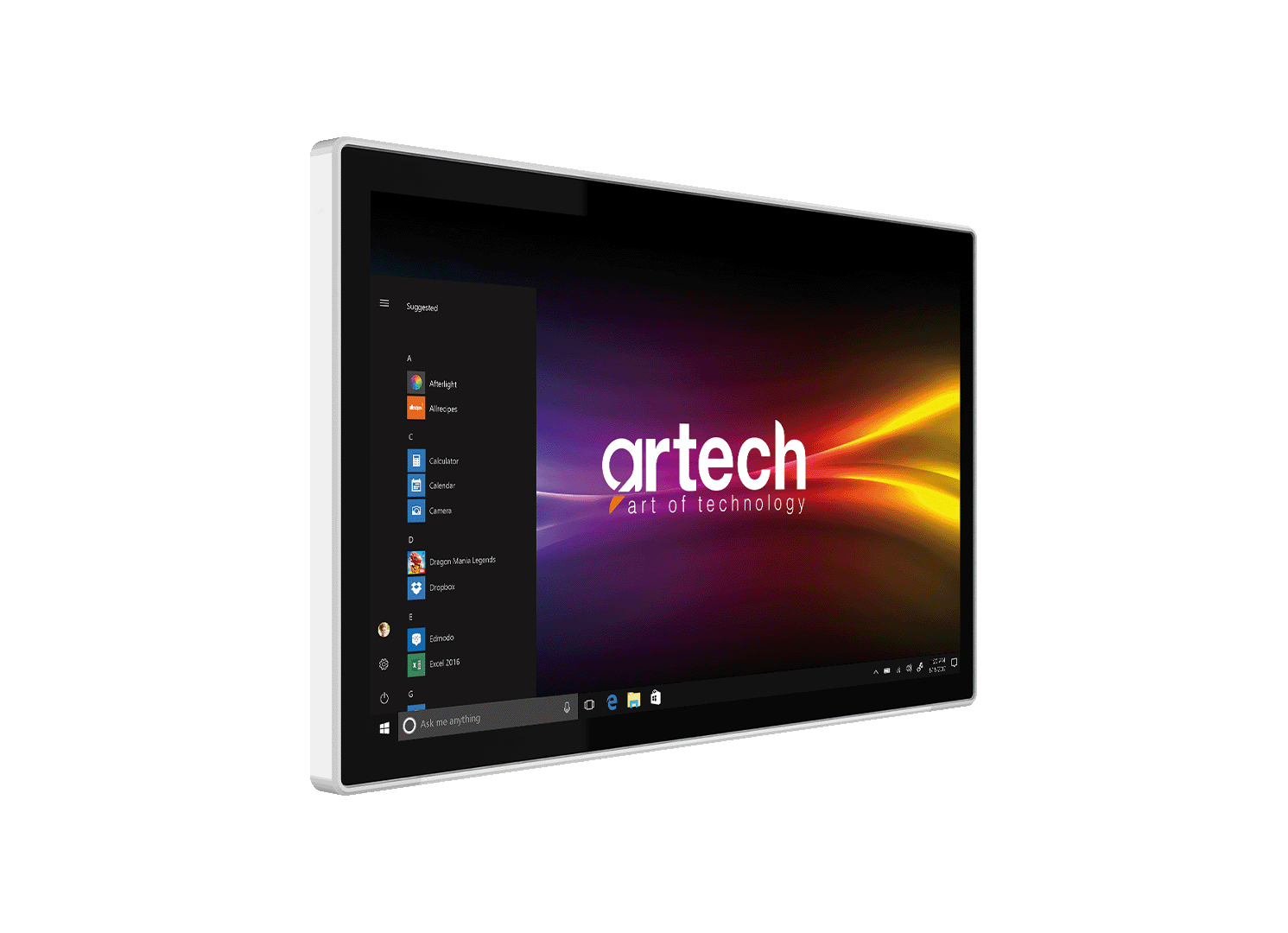

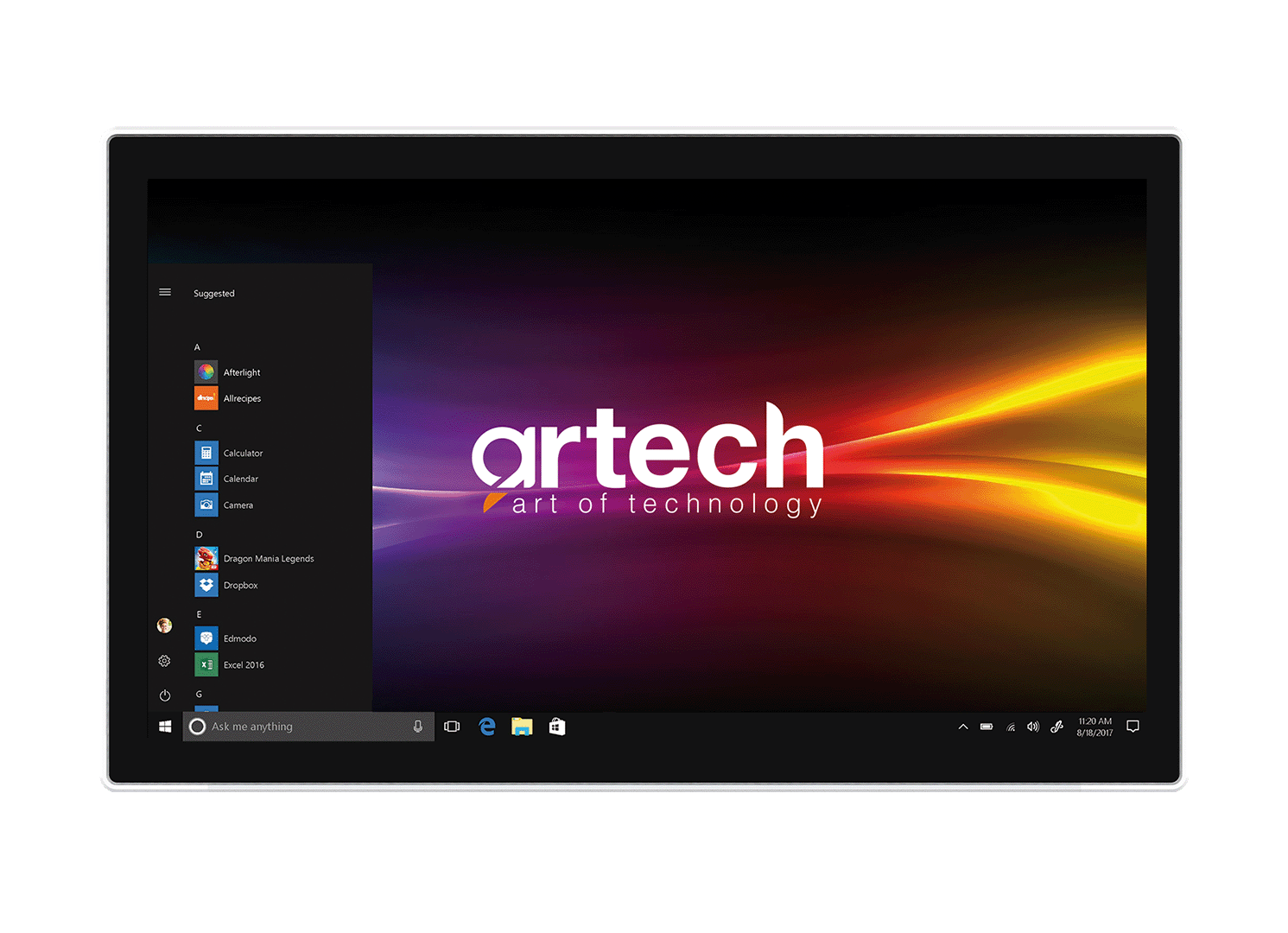

21.5'' Medical Panel Computer

The Artech Medical Panel PC is an advanced medical informatics solution designed to meet the dynamic needs of healthcare professionals. This device provides a sterile, efficient, and user-friendly platform suitable for all medical environments.

Key Features:

  • Optimal Sterility Standards: Artech Medical Panel Computer introduces unparalleled cleanliness in medical technology. Its superior sterile construction ensures a safe and clean environment, surpassing existing hygiene standards for the well-being of both patients and medical staff.
  • User-Centred Design: With its intuitive ergonomics, the Artech Medical Panel Computer is designed for the modern healthcare professional. Featuring a responsive touchscreen interface, it promises an enhanced user experience, making medical tasks more straightforward and more comfortable in any setting.
  • Dependable Performance: Integrating flawlessly with existing hospital information systems, the Artech Medical Panel Computer delivers unwavering reliability. Access essential patient data quickly and accurately, supporting decision-making and boosting overall hospital efficiency.
  • Crystal Clear Clarity: With its high-resolution display, the Artech Medical Panel Computer offers unmatched visual precision, ensuring detailed and precise viewing of medical imagery and patient records.
  • Designed for Cleanliness: With an IP65-rated front panel, the Artech Medical Panel Computer is easy to sterilize and maintains high standards of cleanliness, which are necessary in all medical contexts.
  • Quiet Operation: The silent, fanless design of the Artech Medical Panel Computer ensures a noise-free operation, contributing to a quiet atmosphere conducive to patient recovery in various healthcare environments.

Transform your medical facility with the Artech Medical Panel Computer, where technology meets healthcare innovation. Elevate the standard of patient care with a platform designed for today's medical challenges.

Touch Screen Options
Touch Screen Options
Access to Patient Information and Personnel Tracking
Access to Patient Information and Personnel Tracking
Fanless Design, Silent Operation
Fanless Design, Silent Operation
Body for Medical Use
Body for Medical Use

Sectors

Technical Specifications

System
CPU :
Intel® Celeron / iCore Options
Cache :
By CPU
Memory :
2 x DDR3 SO-DIMM Sockets, Max. Capacity 32 GB
Video RAM :
Intel® HD Graphics
Chipset :
By CPU
Watchdog Timer :
255 Level Reset
System Fan :
N.A.

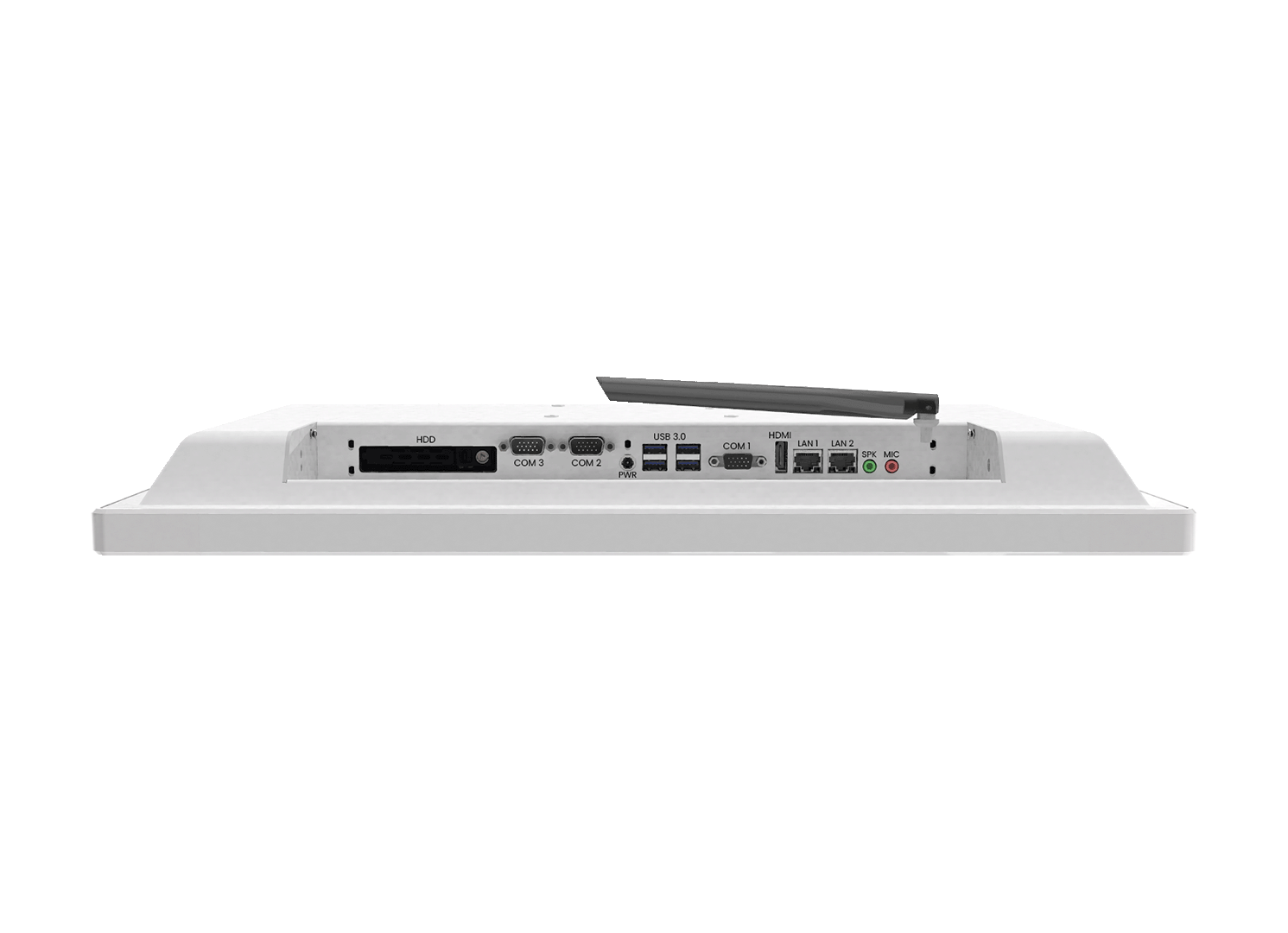

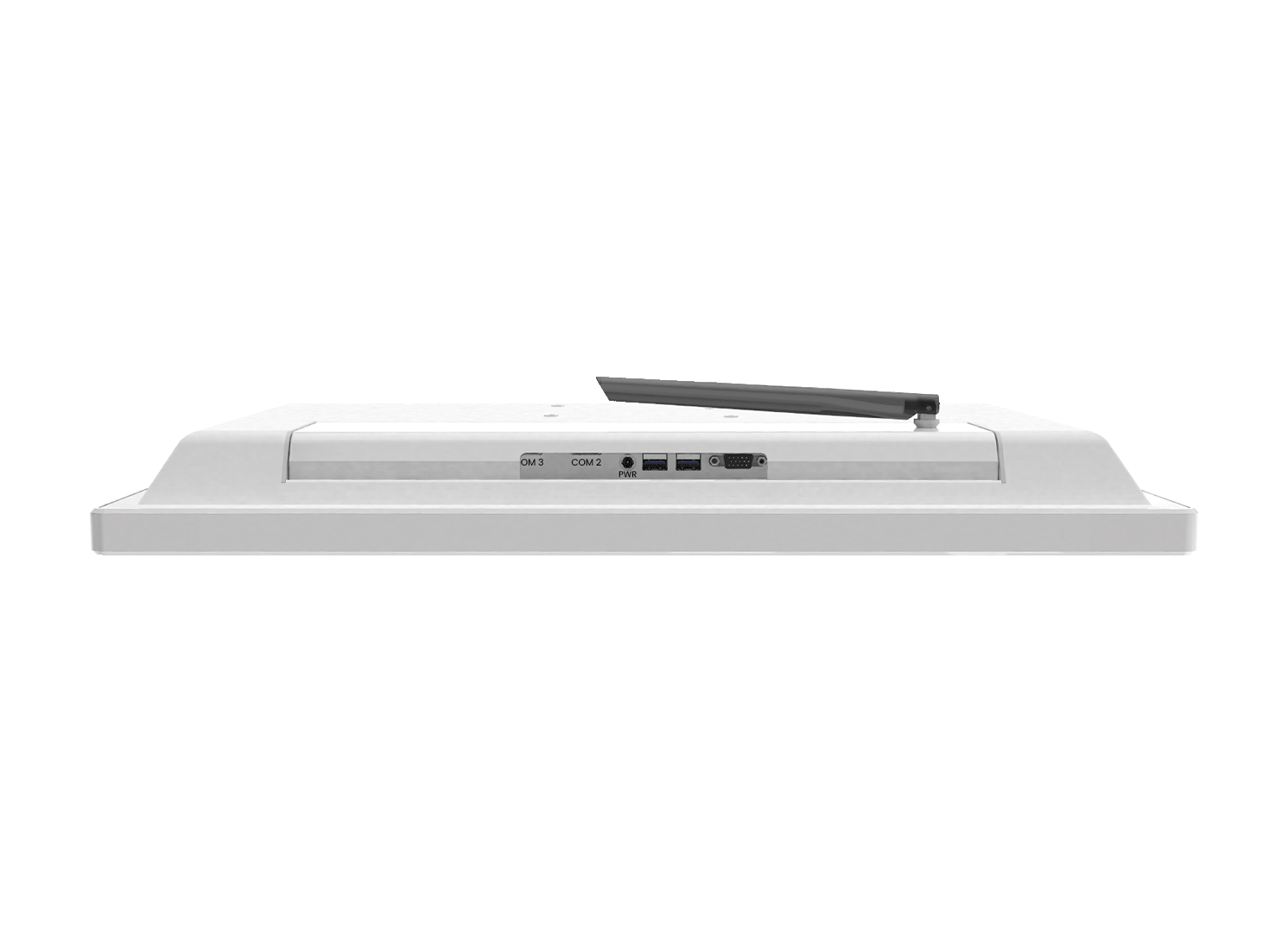

I/O
Serial Port :
RS-232/422/485
Parallel Port :
N.A.
USB Port :
4 x USB 3.0
LAN :
Dual Lan; Dual Gigabit Ethernet 10/100/1000
Wireless LAN :
802.11 b / g / n (Optional)
Audio :
Line In & Out (AC’97 Codec Audio)
Data Storage
HDD / Type :
2.5" HDD in Vibration Resistant Slot
SSD :
64 GB / 128 GB / 256 GB
Feed
Input :
110 / 220VAC or / 24VDC
Extra Video Output
Type :
HDMI/VGA
Max. Resolution :
4096x2160
LCD Screen
Type and Size :
21.5" LVDS (16:9 Widescreen)
Max. Resolution :
1920 x 1080, Full HD
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 Hours
Touch Screen :
21,5" Touch - Projected Capacitive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Fully Enclosed Medical Class
Front Frame :
IP65 Front Face Protection
Dimensions :
Variable According to Screen Size

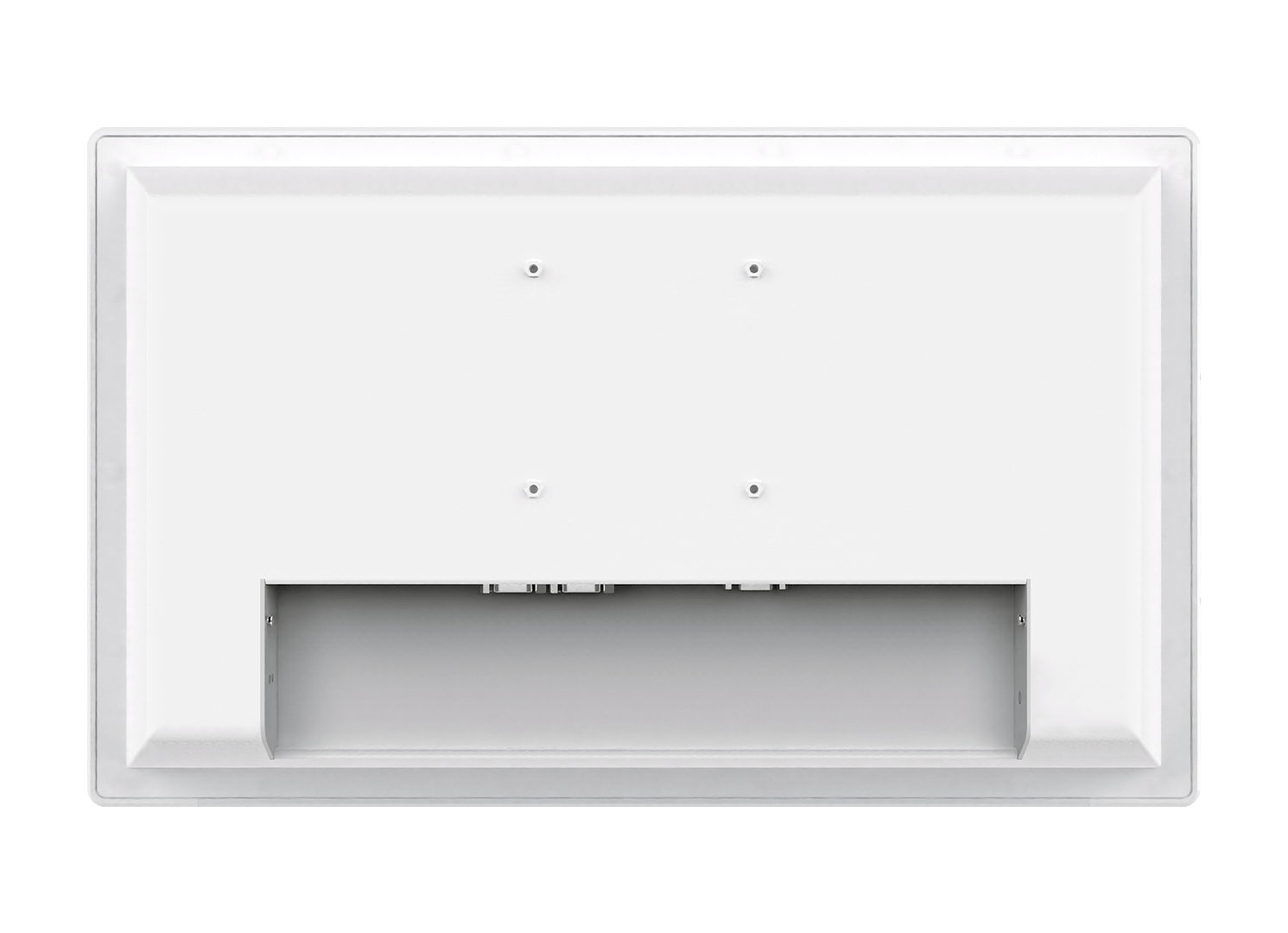

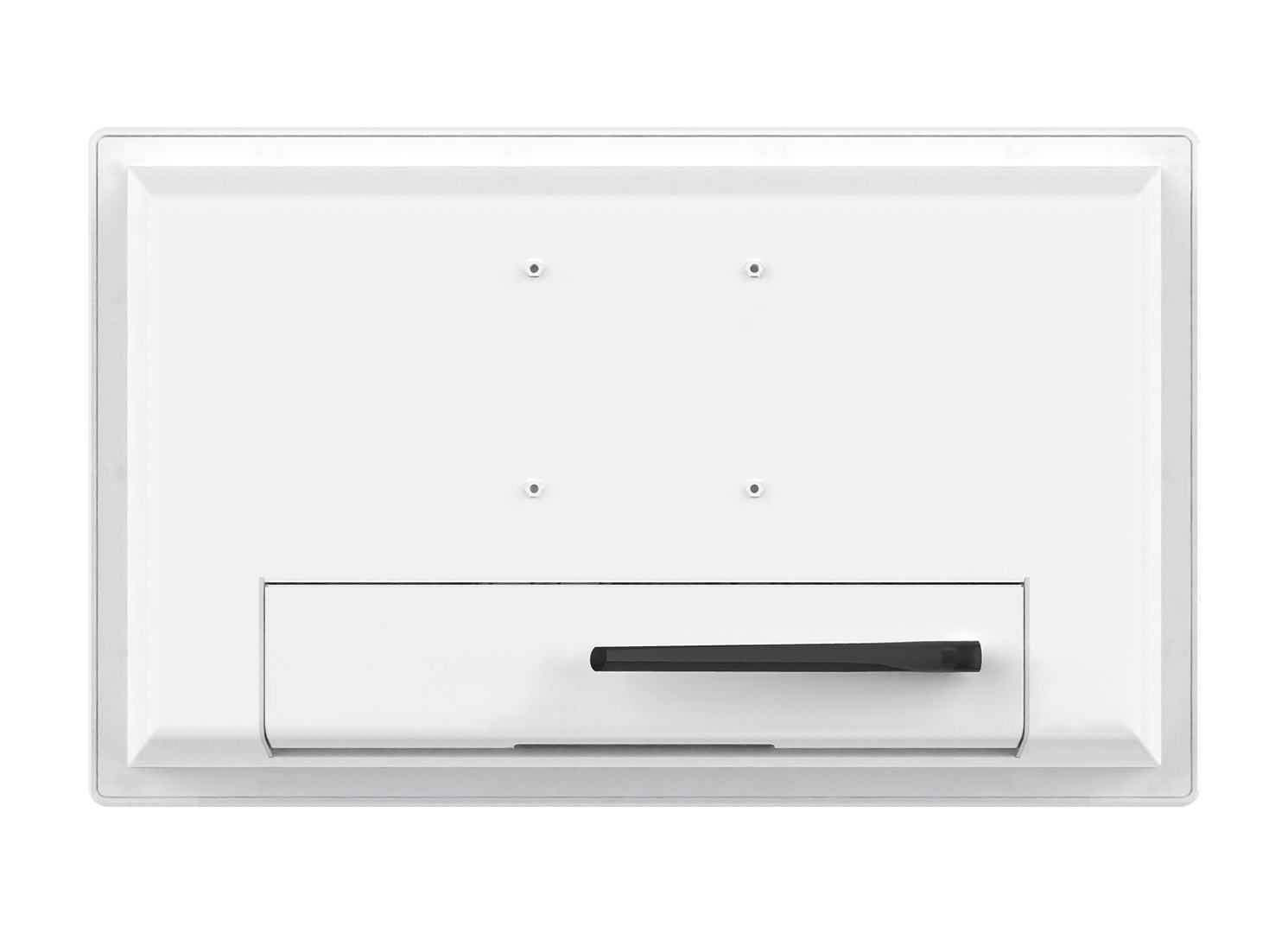

Mounting :
Panel and Vesa Mounting
Order Code
CPU :
Intel® Celeron / iCore Options
PSU :
DC - 12/24 VDC
RAM :
R4, R8, R16, R32
HDD :
500 GB HDD (Optional), 256 GB SSD, 128 GB SSD, 64 GB SSD
Wifi :
Optional
