VW-349 Series

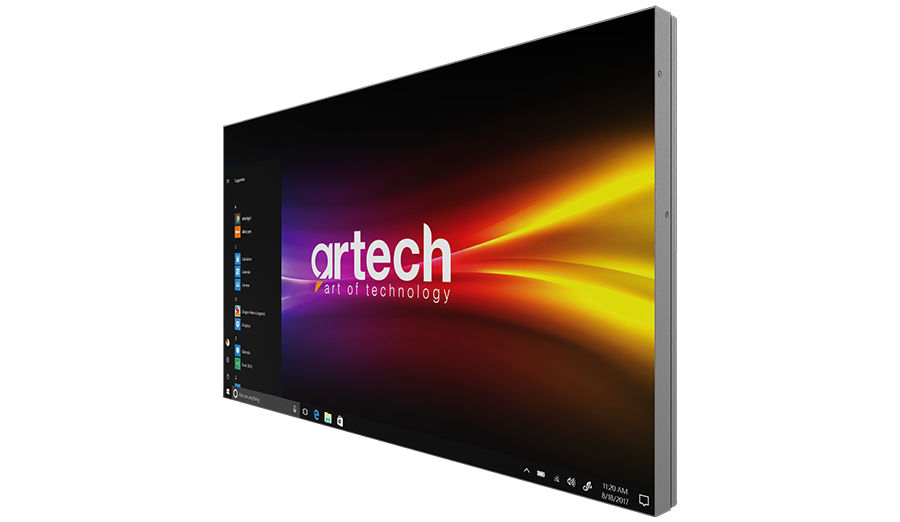

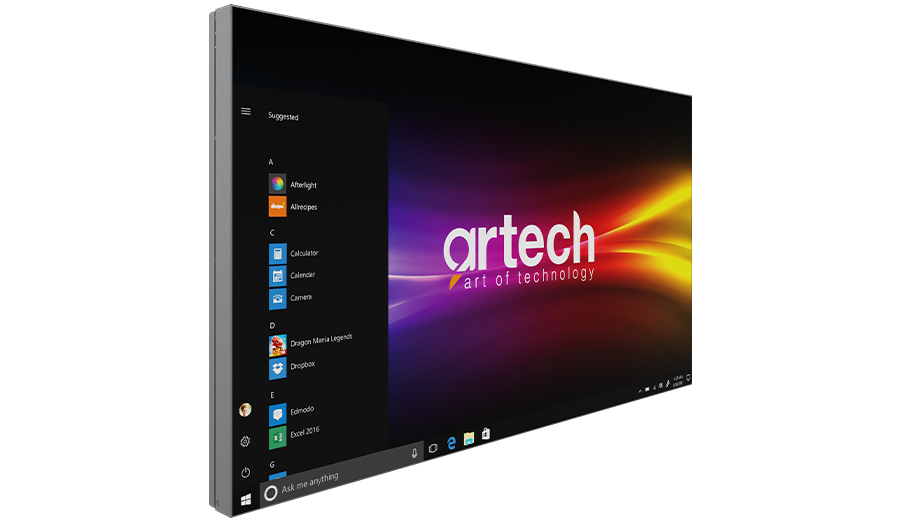

Artech Videowall: High-Resolution Visual Solutions for Multiple Usage Areas

Artech Videowall is designed to meet the effective communication needs in diverse settings such as shopping malls, exhibition centers, airports, hotels, stadiums, and factories. By combining multiple screens, this system can reach the desired sizes, providing high-resolution, high-quality images. It ensures clarity with each screen displaying its native resolution, eliminating any blurriness. The easy-to-manage and adjustable mounting system simplifies installation and maintenance processes. Artech Videowall offers an excellent visual solution for various businesses and organizations, enhancing engagement and viewer satisfaction.

Key Features:

49'' Screen and Customizable Matrix Videowall: Tailored size and layout options to fit specific needs.
High Resolution: Clear images in each screen’s native resolution.
Easy Installation: Practical setup and maintenance with an adjustable mounting system.
Versatile Applications: Ideal for both commercial and industrial environments.

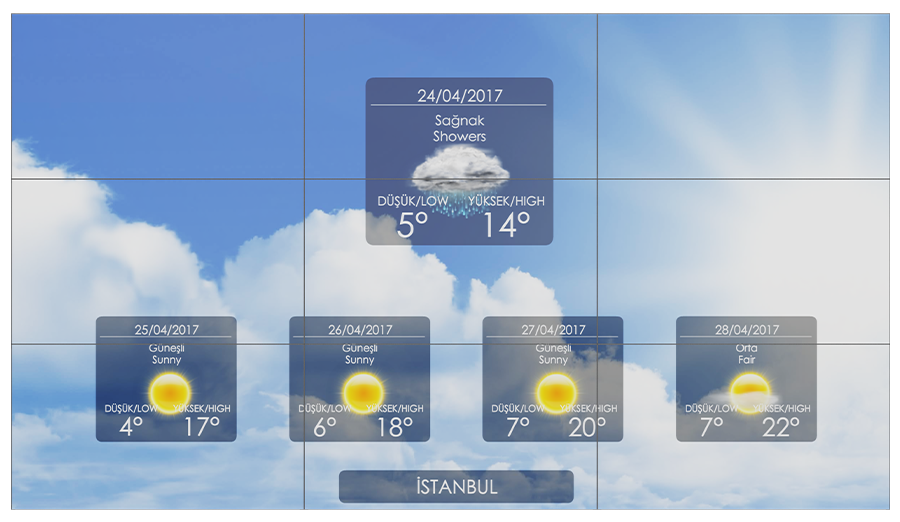

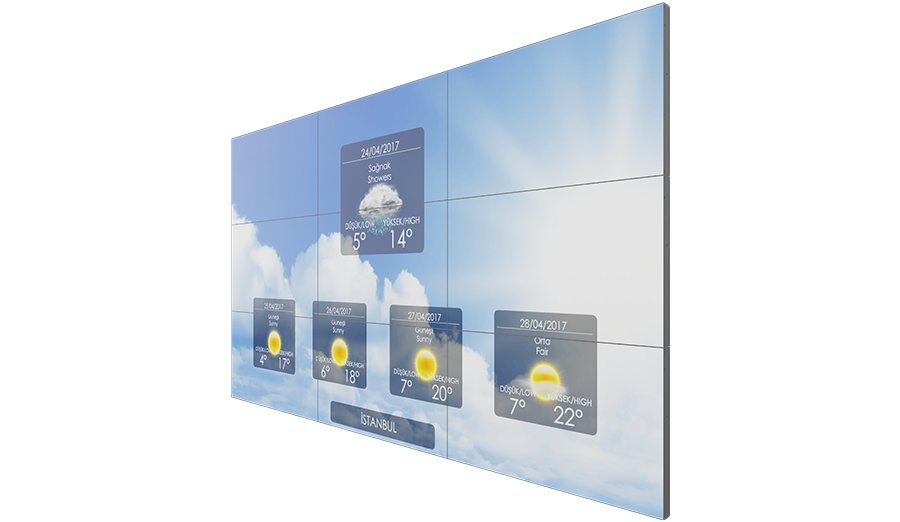

Desired Matrix and High Resolution Image

Desired Matrix and High Resolution Image

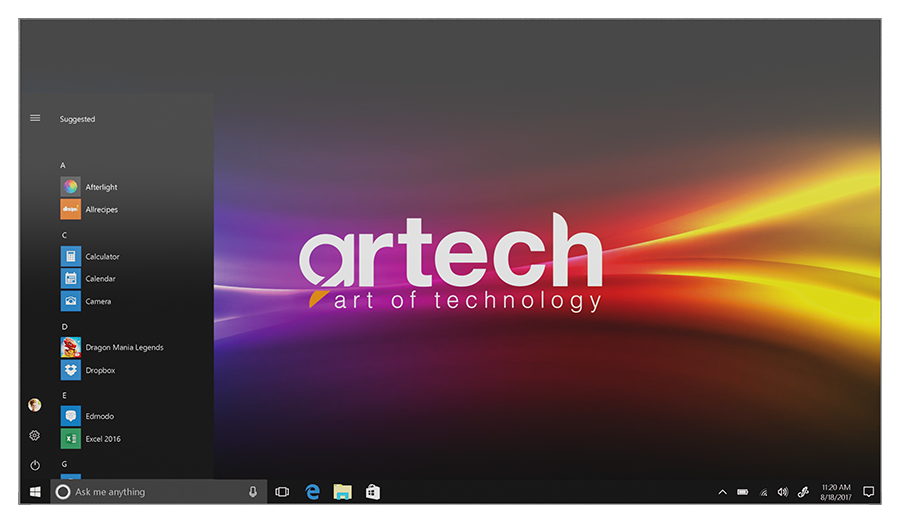

Self-Resolution Display on Each Screen

Self-Resolution Display on Each Screen

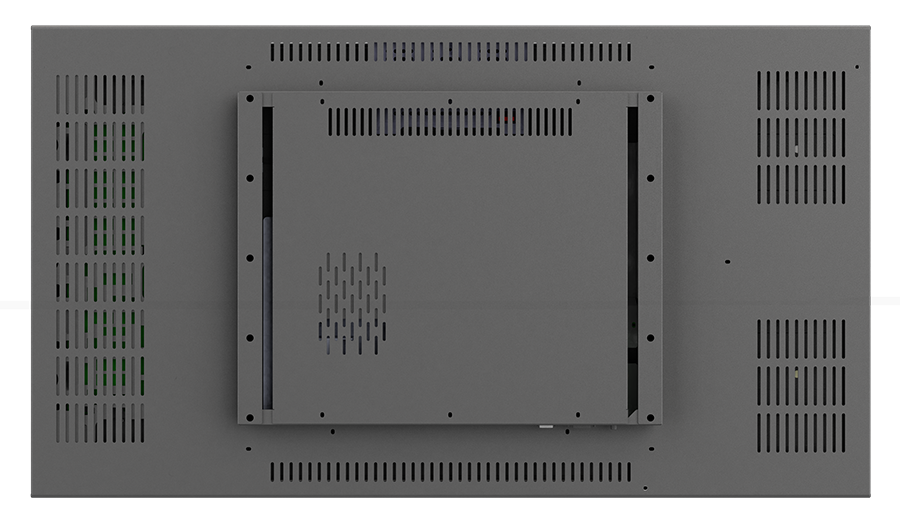

User Serviceable Hanger System

User Serviceable Hanger System

Sectors

Technical Specifications

System

CPU :

Intel® Icore i5/i7

Cache :

By CPU

Memory :

2x DDR4 2133 MHz / 32GB Max

Video RAM :

Intel Gen9 Graphics

Control :

Intel® H110

Watchdog Timer :

255 Level Reset

System Fan :

N.A.

I/O

Serial Port :

2 x RS-232/422/485

USB Port :

2 x USB 2.0 - 1 x PS2 K/B and Mouse

LAN :

1 x LAN Realtek Gigabit Ethernet

Audio :

Line in & out (AC’97 codec audio)

Expansion Slot :

1 x PCIex16, 1xPCIe x1, 3xPCI, 1xPCIe x4, 1xMsata

Data Storage

Memory :

1 TB

HDD / Type :

Vibration Resistant Slot 2.5 ”(500 GB HDD)

SSD :

1TB

Feed

Input :

110 / 220VAC

Extra Video Output

Type :

HDMI

Max. Resolution :

1920x1080

LCD Screen

Type and Size :

49" LVDS

Max. Resolution :

1920x1080

Pixel Pitch :

0.297mm x 0.297mm

Max Color :

16.7 M

Brightness (cd/m2) :

500/700cd

Contrast Ratio :

700/1

Viewing Angle :

178°(H),178°(V)

Back Light MTBF :

50,000 hours

Mechanical & Environmental Features

Operating Temperature :

0 ~ 60°C

Storage Humidity :

5 ~ 95% (non-condensing)

Case :

Heavy-Duty Metal Case

Weight :

Variable according to screen size (1—5 kg)

Dimensions :

(WxHxD) Variable by screen size

Mounting :

Panel / Wall Mount

Order Code

CPU :

i5, i7

PSU :

AC - 220VAC

RAM :

R4, R8, R16

HDD :

1 TB

Wifi :

N.A
