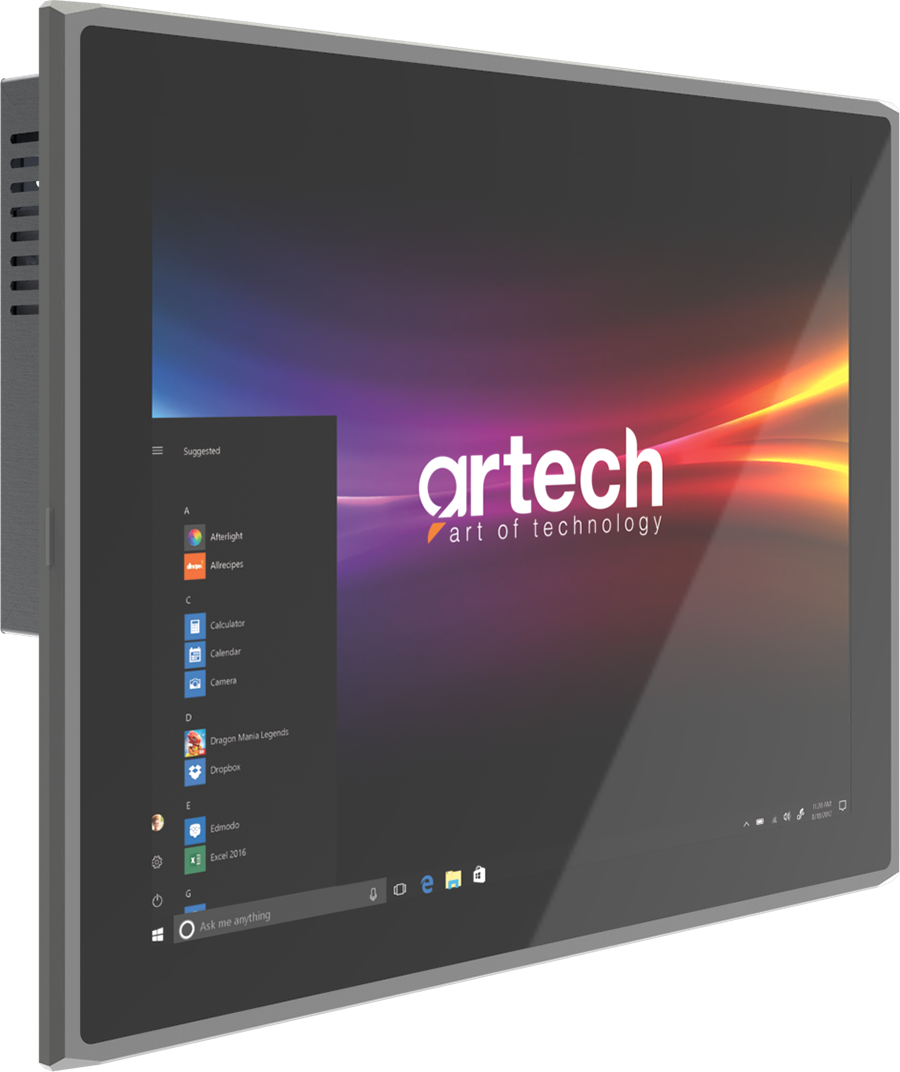

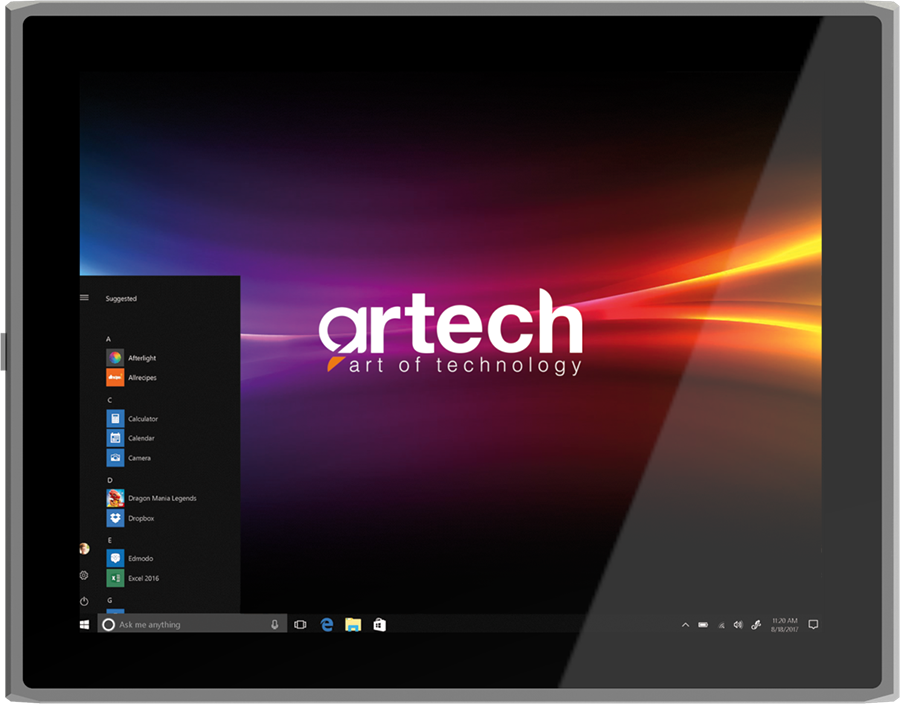

Artech Industrial Monitor: Seamless Digital Information in Industrial Environments
The Artech Industrial Monitor is an industrial-grade compact LCD display solution, perfect for digital signage and corporate communication applications. This 15'' monitor provides high durability and seamless operation in harsh industrial environments with its IP65-rated front panel protection, industrial stainless steel body, power supply filter, and 24/7 operating performance.
Key Features:
- IP65 Front Panel Protection: Superior protection against dust and water.
- Industrial Stainless Steel Body: Robust and long-lasting structure.
- Power Supply Filter: Reduces electrical noise for a more stable operation.
- 24/7 Operating Performance: Ideal for uninterrupted operations.
The 15'' Artech Industrial Monitor is excellent for use in factory automation, control rooms, retail, and public area digital signage boards, among many other applications.
Power Supply Filter
IP65 Front Panel Protection
Industrial Stainless Steel Body
Sectors
Technical Specifications
Feed
Power (Max) :
15W
Input :
110 / 220VAC or 12 / 24VDC
Video Input
Type :
HDMI/DVI/VGA
LCD Screen
Type and Size :
15" LVDS
Max. Resolution :
1024 X 768 , XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
15" Touch - Resistive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Order Code
PSU :
AC - 110/220 VAC, DC - 12/24 VDC
